Get Ready to Soar with Our FPV Racing Drone!
Experience the Thrill of Racing with Our High-Speed FPV Drone!
With its sleek design and foldable frame, this FPV Racing Drone is the perfect combination of power, speed, and ease of use. Whether you're a beginner or an experienced pilot, this drone is sure to deliver an exhilarating flying experience. Made with high-quality materials, it's built to last and withstand the demands of high-speed racing.
Grab Your FPV Racing Drone Today and Take Advantage of Our Store Launch Discount!
Here are the key features and specifications of our FPV Racing Drone:
| Item | Specification |
| 140mm Racing Frame Kit |
Wheel base: 140mm Frame arm thickness: 3mm
Upper plate thickness: 1mm
Side plate thickness: 1mm
Frame kit material: 3K carbon fiber & CNC 6065 aluminium
|
| 1607 2800KV 2-4S Brushless Motor |
KV: 2800KV Lipo cell: 2-4S
Weight: 17.8g (includes wires)
Output shaft length: 14mm
Maximum pull: signal 630g (4S 3030 4-blade propeller)
Maximum power: 350W
Configu-ration: 9N/12P
Mounting holes distance: 12*12mm
Mounting holes: φM2
Bearing: NSK
N52 Strong NdFeB Magnet
Recommend propeller: 3 inch
|
| 4 IN 1 20A BLHeli_S ESC |
Continuous current: 20A Pe ak current: 25A (10S)
BEC output: no
Input voltage: 2-4S
Main control chip: 48mhz EFM8BB2
Firmware upgrade: Supports Dshot600/BLHeli_S/Oneshot125
MOS: 3*3
MOS type: vs3610ae 30v64a
|
| Customized F4 Flight Controller |
Main control chip: STM32F411 Sensor: ICM20602 6-axis
Integrated OSD
PPM/DSM/IBUS/UAR share: UART1-RX
Mounting holes distance: 20*20mm
Weight: 24g
PID circulation rate and refresh rate can up to 32kHz
Supports Betaflight/cleanflight/inav firmware
|

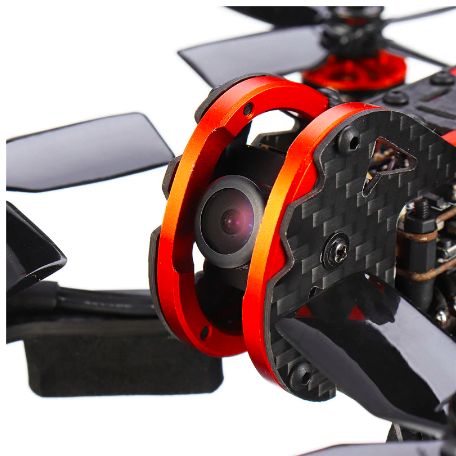

| 700TVL CMOS Camera |
Case size: 19mm*19mm Weight: 9.5g
Total pixels: PAL: 1020H×596V (0.61MP); NTSC: 1020H×508V (0.52MP)
Effective pixels: PAL: 976H×582V (0.57MP); NTSC: 976H×494V (0.48MP)
Signal system: PAL/NTSC switchable
Resolution ratio(horizontal center): 700TVL
Video output: 1.0Vp-p/75Ω
Automatic gain control: 0.25/0.50/0.75/1.00, up to 55dB
White balance: off
Exposure mode: electron exposure
Electronic shutter: 1/50(1/60) - 1/100000 S
Gamma correction: 0.45/1.0
Synchronization method: inter-sync
Camera lens: standard 2.1mm
Lens operating voltage: DC 5-12V
Working current: 70mA (low power consumption)
Working temperature: -20℃~-60℃
Humidity: 0%~98%
|
| 5.8G 40CH 0mW/25mw/200mw switchable VTX |
Supports TBS SmartAudio Transmitting power: 0mW/25mW/100mW/200mW switchable
Channel: 40CH
Full video format: NTSC/PAL
Input voltage: 7V~24V
Power dissipation: +12V/600MW
Size: 25×20×6mm
Weight: ≤3.2g (except antenna)
With copper pipe mini antenna (ipex antenna)
Make sure the antenna is installed at the output end before powering up to avoid damaging internal components.
|
| 3030 4-blade propeller |
Material: PC Mounting hole: 5mm
Center thickness: 6mm
Quantity: 10 pairs
Color: black, red, yellow, green
Weight: 5g a pair
Delivery color randomly (10 pairs of propellers are the same color)
|
| Lipo Battery |
Not included Recommend 2-3S 450-650mah |
